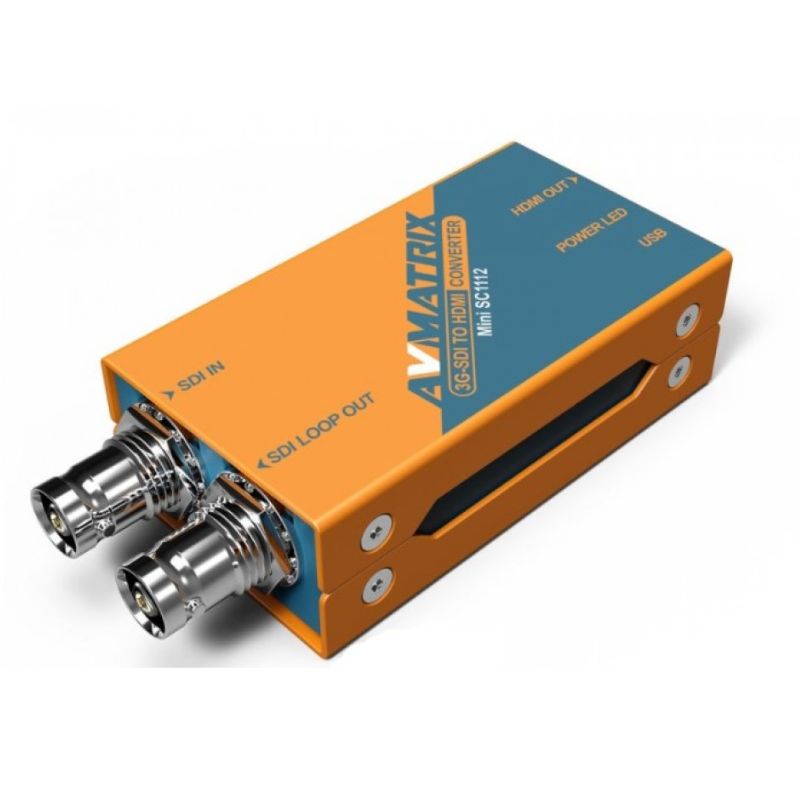

AVMATRIX MINI SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter
KSh 11,880.00
Feature Detailed Specification
Model Number Mini SC1112
Video Input 1 × 3G/HD/SD-SDI (BNC 75Ω with Level A & Level B support)
Video Outputs
1 × HDMI Type-A Female
1 × 3G/HD/SD-SDI Loop Out (BNC)
SDI Input Auto-Switching Automatically detects SD, HD, and 3G-SDI signal structures
SDI Compliance Matrix SMPTE 259M / SMPTE 292M / SMPTE 424M standards
SDI Color Space & Precision YUV 4:2:2 processing pipeline
HDMI Format Support 1080p, 1080i, 720p, 576i, 480i up to 60Hz
AVMATRIX MINI SC1112 3G-SDI to HDMI Pocket-Size Broadcast Converter
Bridge the gap between professional broadcast gear and consumer displays with the AVMATRIX MINI SC1112 3G-SDI to HDMI Broadcast Converter. Designed for live broadcast crews, houses of worship, and video production environments in Kenya, this ultra-compact, heavy-duty utility device seamlessly converts an SDI signal to a full-size HDMI output. It supports both Level A and Level B video signals up to crisp 1080p60 resolutions and features an auto-selecting input engine that instantly adapts to 3G-SDI, HD-SDI, or SD-SDI feeds. Paired with a built-in signal loop-out for localized monitoring and an extraordinarily low power footprint, it stands as an invaluable micro-component for dependable field scaling.
Technical Specifications
| Feature | Detailed Specification |
| Model Number | Mini SC1112 |
| Video Input | 1 × 3G/HD/SD-SDI (BNC 75Ω with Level A & Level B support) |
| Video Outputs |
1 × HDMI Type-A Female 1 × 3G/HD/SD-SDI Loop Out (BNC) |
| SDI Input Auto-Switching | Automatically detects SD, HD, and 3G-SDI signal structures |
| SDI Compliance Matrix | SMPTE 259M / SMPTE 292M / SMPTE 424M standards |
| SDI Color Space & Precision | YUV 4:2:2 processing pipeline |
| HDMI Format Support | 1080p, 1080i, 720p, 576i, 480i up to 60Hz |
| Power Input Port | 1 × Micro-USB (Provides universal flexible powering options) |
| Operating Voltage Range | DC 3.3V to 5V |
| Power Consumption | Ultra-efficient 1.5 Watts |
| Chassis Build Structural Style | Heavy-Duty Metal Enclosure with detachable mounting bracket |
| Dimensions (W × D × H) | 74mm × 41mm × 23mm (Pocket-size layout) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
AVMATRIX MINI SC1112 3G-SDI to HDMI Broadcast Converter. Key Features & Value Propositions
AVMATRIX MINI SC1112 3G-SDI to HDMI Broadcast Converter Pros & Cons
Pros
-
Full-size, robust BNC and HDMI ports maintain physical connectivity grip under heavy workspace stress.
-
Auto-select configuration detects signal standards without complex manual software toggles.
-
Extremely low power draw facilitates mobile remote deployment on portable power packs.
-
Rugged metal frame holds up beautifully against repeated transport wear and tear.
Cons
-
Purely unidirectional system layout; only translates SDI inputs out to HDMI displays (cannot convert HDMI to SDI).
-
Does not support 4K scaling workflows (strictly limited to standard 1080p60 architectures).
AVMATRIX MINI SC1112 3G-SDI to HDMI Broadcast Converter Variation Price Table (Estimated Kenya Market)
| Converter Model Selector | Signal Conversion Blueprint | Onboard Monitoring Interfaces | Estimated Price (Ksh) |
| AVMATRIX MINI SC1112 (Current) | 3G-SDI Input to HDMI Output | Includes 1× 3G-SDI Loop Output | 13,500 |
| AVMATRIX MINI SC1221 | HDMI Input to Dual 3G-SDI Output | Includes 2× Dual 3G-SDI Split Outputs | 14,000 |
| AVMATRIX SC2040 Pro | Bidirectional 3G-SDI / HDMI | Simultaneous Dual Cross-Conversion | 22,500 |
AVMATRIX MINI SC1112 3G-SDI to HDMI Broadcast Converter Suitable Application Areas
-
Church Overhead Monitor Layouts: Convert professional multi-camera video mixer outputs over long SDI cable runs, connecting straight to budget-friendly consumer HDMI projectors or displays inside the sanctuary.
-
Live Event Production Rigs: Seamlessly monitor outdoor wireless camera signals on set by taking advantage of the mini loop out line to feed engineering control booths.
-
Corporate Boardrooms & Displays: Patch SDI broadcast infrastructure directly into standard office presentation television screens or video wall matrix grids effortlessly.
-
Mobile Gathering Kits: An essential backup utility item for field videographers’ gear bags due to its highly portable profile and swift standalone power capability.
Verdict
The AVMATRIX MINI SC1112 represents a highly precise, exceptionally durable utility component that belongs in every video engineer’s field bag. By merging heavy-duty metal protection with a driverless, auto-sensing video conversion engine, it completely simplifies the integration of commercial broadcast signals into accessible HDMI spaces. While it focuses entirely on high-definition maximum resolution scales, its elite power-saving attributes and stable 24/7 architecture ensure unmatched dependability on site. For production groups and content spaces in Kenya looking to ensure safe, lag-free signal translation on a reasonable budget, adopting this mini converter block is a deeply practical choice
