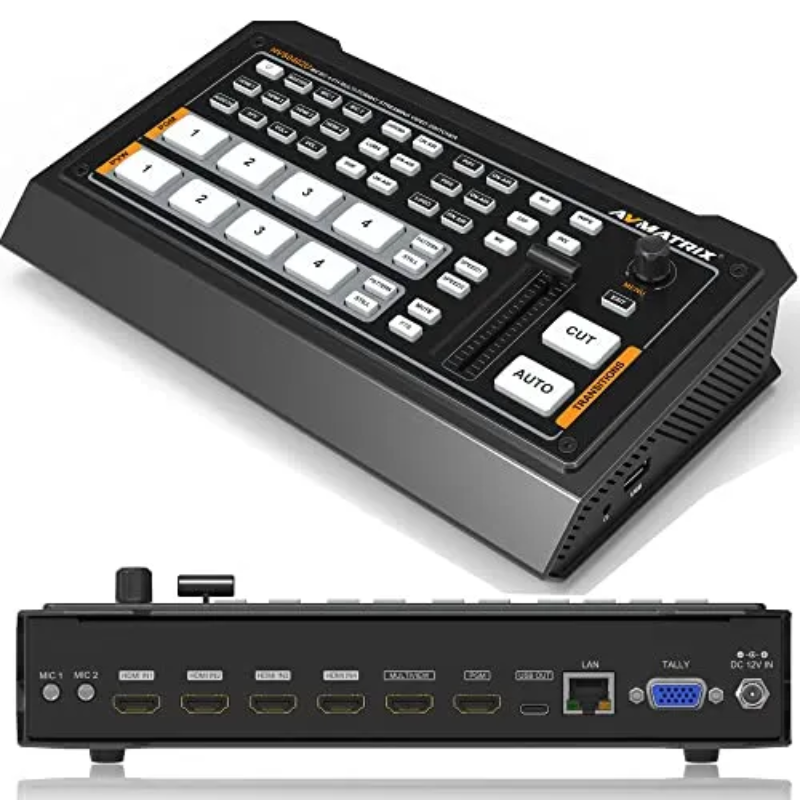

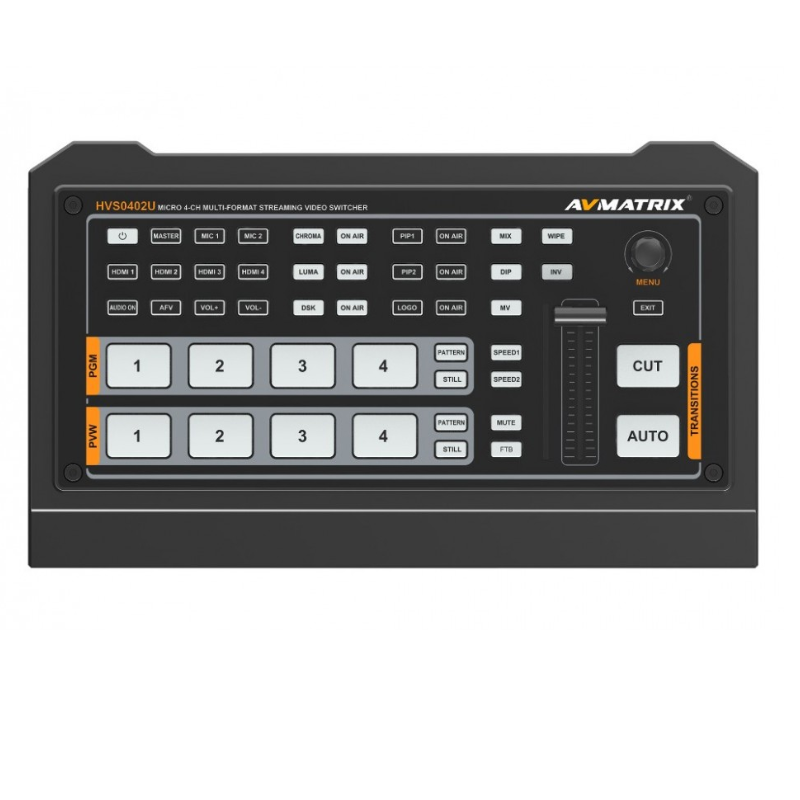

AVMATRIX HVS0402U MICRO 4-Channel HDMI Live Streaming Video Switcher
KSh 83,900.00
Feature Detailed Specification
Video Input Channels 4 × Autodetected HDMI Type-A Female
Supported Input Formats 1080p (60/59.94/50/30/25/24 fps), 1080i (60/50 fps), 720p, 576p, 480p
Primary Video Outputs 1 × HDMI Program (PGM), 1 × HDMI Multiview (MV)
Output Format Support HDMI PGM up to 1080p60; USB-C up to 1080p60
Streaming & Capture Out 1 × USB Type-C (UVC Protocol for PC/Mac apps)
Audio Connectors Inputs: 2 × 3.5mm TRS Stereo Mic/Line; Outputs: 1 × 3.5mm Headphone
Audio Mixing Matrix 4 × HDMI Embedded Audio + 2 × Analog Inputs (0–500ms Delay)
Upstream Keyers 1 × Luma Key, 1 × Chroma Key, 2 × PiP (Picture-in-Picture) / PoP
AVMATRIX HVS0402U MICRO 4-Channel HDMI Live Streaming Video Switcher
Streamline your multi-camera live broadcasts with the AVMATRIX HVS0402U MICRO. Purpose-built for event videographers, corporate webinar producers, house of worship media teams, and educators in Kenya, this ultra-compact 4-channel HDMI multi-format video switcher turns any workspace into a professional television studio. Supporting up to 1080p60 video input and output with plug-and-play USB-C webcam capture, real-time audio mixing, and advanced digital effects like Chroma Keying and Picture-in-Picture, it provides clean, high-tier production values without complex setup overheads.
Technical Specifications
| Feature | Detailed Specification |
| Video Input Channels | 4 × Autodetected HDMI Type-A Female |
| Supported Input Formats | 1080p (60/59.94/50/30/25/24 fps), 1080i (60/50 fps), 720p, 576p, 480p |
| Primary Video Outputs | 1 × HDMI Program (PGM), 1 × HDMI Multiview (MV) |
| Output Format Support | HDMI PGM up to 1080p60; USB-C up to 1080p60 |
| Streaming & Capture Out | 1 × USB Type-C (UVC Protocol for PC/Mac apps) |
| Audio Connectors | Inputs: 2 × 3.5mm TRS Stereo Mic/Line; Outputs: 1 × 3.5mm Headphone |
| Audio Mixing Matrix | 4 × HDMI Embedded Audio + 2 × Analog Inputs (0–500ms Delay) |
| Upstream Keyers | 1 × Luma Key, 1 × Chroma Key, 2 × PiP (Picture-in-Picture) / PoP |
| Downstream Keyers | 1 × DSK, 1 × Logo Overlay |
| Transitions & Effects | Physical T-Bar, AUTO, CUT; WIPE (9×2 patterns), MIX, DIP, FTB |
| Media Library Storage | 49 default patterns, 16 imported images, 16 captured images via USB-A |
| Remote Network Control | 1 × RJ45 LAN Port for PC/Laptop software interface |
| System Power & Build | DC 12V 1A (Device draws ~12W); Weight: 1 kg |
AVMATRIX HVS0402U MICRO Key Features & Value Propositions
- Plug-and-Play USB-C Webcam Streaming: The integrated USB Type-C output functions as a driverless Universal Video Class (UVC) capture device. It feeds your switched video mix straight into any computer software like OBS Studio, vMix, Zoom, and Microsoft Teams instantly.
- Comprehensive Multiview Monitoring: Route all four active HDMI source feeds simultaneously to a single workspace display screen via the HDMI Multiview output, featuring configurable layouts and status overlays for simple tracking.
- Tactile Hardware Control Layout: Avoid software interface lag. The console features robust source-selection buttons, an ergonomic physical T-bar transition mechanism, and dedicated toggles for Auto or Cut switching paths.
- Advanced Studio Keying Features: Polish your virtual layouts using the built-in Chroma and Luma key engines for flawless green-screen backdrops, custom channel logo graphic layers, and dual independent PiP windows.
- Synchronized Audio Mixer & Delay: Combine embedded digital HDMI sound feeds with external analog lines. An integrated 0-500ms audio delay tool lets you realign audio feeds perfectly to combat sync issues on location.
AVMATRIX HVS0402U MICRO Pros & Cons
Pros
- Extremely compact and lightweight micro desktop profile makes field transport effortless.
- Driverless USB-C capture is instantly recognized by streaming and conferencing tools.
- Rich set of transitions and effects, including T-bar control, relative to its small footprint.
- Includes LAN control port for alternative computer software remote management.
Cons
- Maximum workflow processing and output are bounded at 1080p60 (no 4K resolution processing).
- Lacks native direct-to-LAN IP streaming (requires a host PC over USB-C to push streams to the web).
AVMATRIX HVS0402U MICRO Variation Price Table (Estimated Kenya Market)
| Switcher Model Lineup | Physical Core Interfaces | Integrated Layout Monitor | Estimated Price (Ksh) |
| AVMATRIX HVS0402U MICRO (Current) | 4 × HDMI Inputs | External Monitor Required | 60,000 |
| AVMATRIX SHARK H4 | 4 × HDMI, LAN Direct Stream | External Monitor Required | 61,000 |
| AVMATRIX SHARK H4 PLUS | 4 × HDMI, LAN Direct Stream | Integrated Folding 10.1″ IPS Screen | 81,000 |
AVMATRIX HVS0402U MICRO Suitable Application Areas
- Corporate Webinars & Virtual Events: Connect multi-angle presenter cameras alongside an executive presentation laptop to stream clean, branded video layouts over Zoom or Teams.
- Houses of Worship: Easily capture sanctuary camera positions and sermon slide notes to output live multi-view content or virtual presentations cleanly.
- E-Learning & Virtual Training Hubs: Manage interactive virtual classrooms by seamlessly nesting side-by-side presentation graphics next to the teacher’s live camera capture.
- Compact Mobile Broadcasting: A space-conscious, plug-and-play solution for remote interviews, talk shows, and gaming commentary environments that need fast field deployments.
Verdict
The AVMATRIX HVS0402U MICRO is an exceptionally affordable and highly efficient tool for small production setups that need to transition to professional multi-camera mixing. By putting responsive hardware push buttons, precise T-bar control, digital chroma keying, and plug-and-play USB-C video output inside a micro layout, it completely handles everyday live-switching tasks without needing massive production racks. For digital media teams and creators in Kenya searching for an accessible, low-profile video mixer that delivers clean broadcast results on a budget, this micro switcher represents an incredibly smart investment.
