Datavideo SE-650 4-Channel Digital Video Switcher
KSh 184,000.00
Technical Specifications
Category Specification
Video Ingest Grid 4 Channels Total: 2x HD-SDI (BNC), 2x HDMI Type-A
Supported Video Formats 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz
Video Output Grid 1x HD-SDI (Assignable to PGM/PVW/AUX), 2x HDMI (1x Multiview, 1x PGM)
Frame Synchronizer Built-in frame synchronizer (TBC) on every input channel; no external sync required
Audio Inputs 2x Balanced XLR Analog inputs, 1x Stereo RCA pair, Embedded SDI/HDMI audio
Audio Outputs 1x Stereo RCA pair, 1x 3.5mm Headphone Jack; Embedded SDI/HDMI audio
Internal Audio Mixer Integrated 4-channel audio mixer with volume sliders and audio-follow-video (AFV)

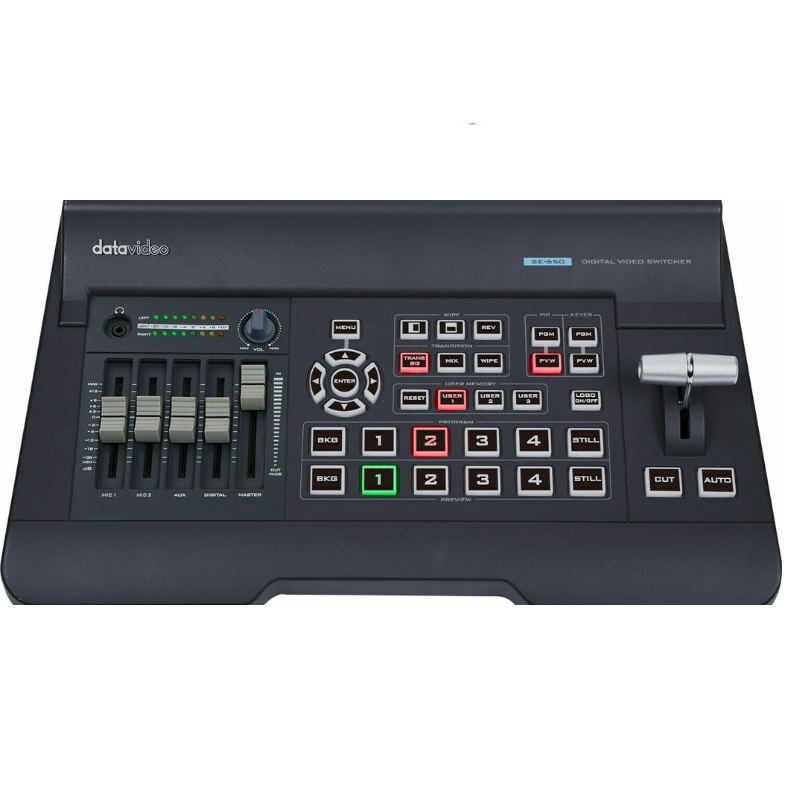

Datavideo SE-650 4-Channel Digital Video Switcher
Streamline your live broadcast workflows with the Datavideo SE-650, a professional, highly compact 4-channel digital video switcher engineered for small-scale video production houses, corporate studios, and houses of worship. Combining an intuitive physical control interface with advanced digital processing, the SE-650 supports a versatile layout of two HDMI and two HD-SDI inputs. With its integrated audio mixer, downstream keyers (DSK), and picture-in-picture (PiP) capabilities, this all-in-one desktop production center delivers broadcast-grade results without complex multi-device racks.
Technical Specifications
| Category | Specification |
| Video Ingest Grid | 4 Channels Total: 2x HD-SDI (BNC), 2x HDMI Type-A |
| Supported Video Formats | 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz |
| Video Output Grid | 1x HD-SDI (Assignable to PGM/PVW/AUX), 2x HDMI (1x Multiview, 1x PGM) |
| Frame Synchronizer | Built-in frame synchronizer (TBC) on every input channel; no external sync required |
| Audio Inputs | 2x Balanced XLR Analog inputs, 1x Stereo RCA pair, Embedded SDI/HDMI audio |
| Audio Outputs | 1x Stereo RCA pair, 1x 3.5mm Headphone Jack; Embedded SDI/HDMI audio |
| Internal Audio Mixer | Integrated 4-channel audio mixer with volume sliders and audio-follow-video (AFV) |
| Effects & Keys | Picture-in-Picture (PiP), Downstream Keyer (DSK), Luma Key, Wipe, Mix, Cut transitions |
| Wipe Generator | 32 Wipe patterns with variable border width and color attributes |
| Logo & Still Store | Built-in animation/still store capacity (Up to 500 images via USB upload) |
| System Control | 1x D-Sub 9-pin tally output interface |
| Power Infrastructure | DC 12V operation with protective lockable barrel terminal |
Datavideo SE-650Pros and Cons
Pros
- Intuitive Control Deck: High-tactility physical control surface with dedicated cross-point buttons, transition sliders, and a smooth T-Bar for confident live switching.
- Flexible I/O Architecture: Blends professional long-distance HD-SDI input terminals with consumer HDMI connections for diverse camera and laptop configurations.
- Built-in Frame Sync: Every input channel features dedicated frame synchronization, eliminating video tearing when switching between un-synchronized camera sources.
- Rich Effects Suite: Advanced processing engine supports high-fidelity downstream keying (DSK), logos, animations, and dual-source Picture-in-Picture overlays.
- Integrated Sound Mixing: Built-in audio console easily manages external analog microphones alongside digital embedded HDMI and SDI sound lines.
Cons
- No Native 1080p Support: Designed primarily for interlaced workflows; caps out at 1080i maximum resolution (does not support native 1080p60 production).
- No Integrated Web Streaming: Requires an external hardware encoder or USB capture card (like the HD AL-HDCP02) to bridge video lines into streaming platforms like OBS or vMix.
Datavideo SE-650 Variations and Price Guide
| Model / Variation | Key Differences | Typical Price Range (KES) |
| Datavideo SE-650 (Standard) | Standalone desktop 4-channel switcher console with standard 12V power supply. | 165,000 – 195,000 |
| SE-650 Stream Bundle | Base unit bundled with an external H.264 streaming encoder or USB capture block. | 185,000 – 220,000 |
| Datavideo SE-700 (Alternative) | Upgraded model featuring 4x pure SDI inputs and dedicated hardware control modules. | 240,000 – 285,000 |
Datavideo SE-650 Suitable Application Areas
- Houses of Worship: Provides a reliable, low-learning-curve mixing desk for handling multi-camera sanctuary layouts and outputting crisp feeds to sanctuary projectors.
- Corporate AV & Webinars: Effortlessly pairs a presenter’s face camera with their presentation laptop over HDMI to deliver polished town halls, interviews, or virtual training events.
- Educational Studios: Fits perfectly into media classrooms, high school news studios, or lecture capture stations looking to train students on industry-standard physical workflows.
- Regional News & Field Kits: The compact, lightweight desktop design makes it incredibly easy to package into mobile flypack cases for on-location remote broadcast applications.
Verdict
The Datavideo SE-650 balances industrial broadcast reliability with a highly approachable, tactile user experience. By managing both SDI and HDMI pipelines through a robust hardware panel, it ensures clean, tear-free video transitions and high-fidelity audio monitoring. While streaming workflows require a companion capture interface, its rock-solid stability and comprehensive internal effects make it a premier choice for growing broadcast setups in Kenya.
