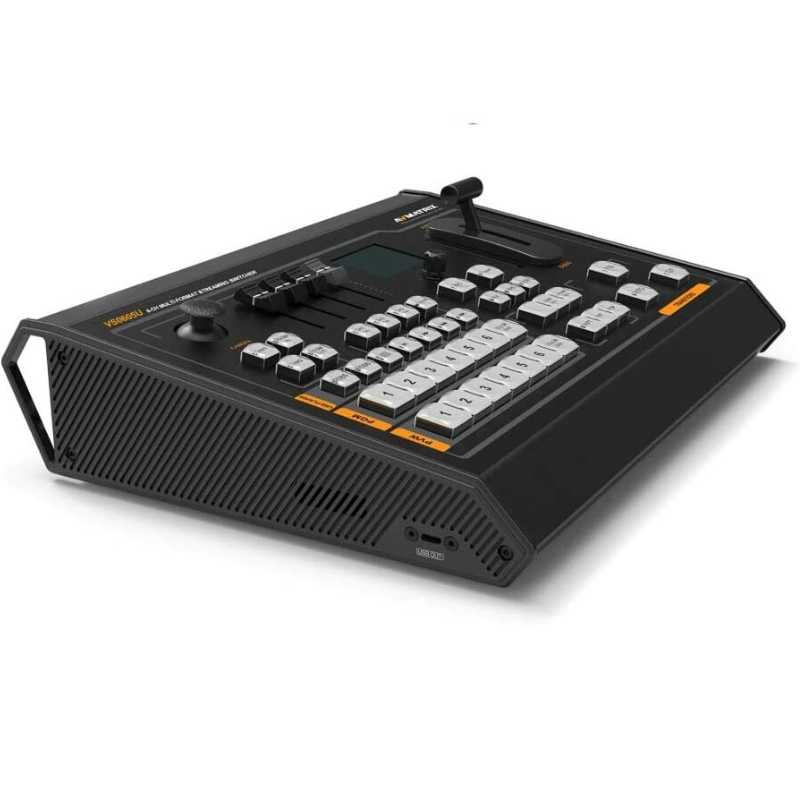

AVMATRIX VS0605U Professional 6-Channel Multi-Format Video Switcher
KSh 188,640.00
AVMATRIX VS0605U Professional 6-Channel Multiformat Switcher
Elevate your live production with the AVMATRIX VS0605U, a compact, broadcast-grade 6-channel multiformat video switcher engineered for churches, concerts, corporate events, esports, webinars, and hybrid classrooms. Deliver seamless HD switching, professional audio mixing, and low-latency USB 3.0 streaming in one robust unit.
Technical Specifications
| Category | Specification |
| Video Inputs | Up to 6x mixed SDI/HDMI (auto-scaling/frame sync per channel) |
| Supported Formats | 720p, 1080i, 1080p up to 60 Hz (multiformat) |
| Video Outputs | 2x 3G-SDI (PGM/PVW), 1x HDMI (PGM/PVW/Multi-view), 1x AUX, 1x USB 3.0 UVC |
| USB Capture | UVC/UAC up to 1080p60 (host compatible: Windows/macOS/Linux) |
| Frame Sync/Scaler | Per-input frame sync and up/down/cross scaling |
| Effects/Keys | CUT/MIX/WIPE, DSK, Luma/Chroma Key, PIP/POP, Still Store |
| Audio Inputs | 2x analog (mic/line), embedded SDI/HDMI audio |
| Audio Processing | AFV, EQ, compressor, limiter, delay; 48 kHz sampling |
| Audio Outputs | Embedded on PGM, analog headphones/line out |
| Control | Front panel, T-bar, Ethernet, RS-232/422 VISCA, GPI/Tally |
| Monitoring | HDMI multiview with meters, labels, tally, clocks |
| Latency | Low-latency switching/USB streaming (scene dependent) |
| Media | Logo/still store, freeze, test patterns |
| Power | DC input (lockable), ~12 V; power consumption per spec |
| Dimensions/Weight | Portable desktop chassis; metal build |
| Environment | Operating temperature per manufacturer spec |
AVMATRIX VS0605U Pros and Cons
Pros
- All-in-one live production: switcher, audio mixer, scaler, and USB streamer in one unit.
- True multiformat compatibility with per-input frame sync and scaling.
- Broadcast features like chroma key, DSK, multiview, and PTZ control at a compact footprint.
- Plug-and-play streaming via UVC/UAC without capture cards.
-
AUX and PVW routing for IMAG or confidence monitors.
Cons
- No 4K program out (1080p max); 4K workflows need external converters/switchers.
- Limited media playback (still store only; no internal video clips).
- PTZ protocol coverage may require specific camera compatibility/firmware.
AVMATRIX VS0605U Variations and Price Guide
| Model/Variation | Key Differences | Typical Price Range (KES) |
| VS0605U (Base) | 6-ch SDI/HDMI, USB 3.0 UVC, multiview, DSK/chroma, audio mixer | 140,000–220,000 |
| VS0605U + PTZ Kit | Base unit bundled with VISCA/IP PTZ control accessories | 200,000–320,000 |
| VS0605U + I/O Expand | Base unit with SDI/HDMI converters, tally, cables | 180,000–280,000 |
AVMATRIX VS0605USuitable Application Areas
- Houses of Worship: Multi-camera sermons, overflow rooms, and live streaming.
- Corporate & Education: Town halls, training, webinars, hybrid classrooms.
- Live Events: Concerts, conferences, esports, gaming tournaments.
- Broadcast & Production: Field packs, portable studios, ENG/OB support.
- Content Creators: Multi-cam podcasts, product demos, tutorials.
Verdict
The AVMATRIX VS0605U is an exceptional value proposition for mid-tier live production environments requiring a lean hardware profile without sacrificing elite mixing options. By successfully integrating real-time up/down cross-scaling, internal master recording backups, a granular audio matrix, and plug-and-play USB 3.0 streaming into a rugged metal chassis, it delivers an agile and highly dependable alternative to cumbersome multi-device gear racks
