Feature Detailed Specification
Model Number UC2218
Video Inputs 2 × HDMI Type-A Female (Supports HDMI 2.0 / HDMI 1.4)
Primary Digital Output 1 × USB 3.1 Gen 1 Type-C (Up to 200MB/s uncompressed data bandwidth)
Input Signal Video Support Natively handles up to 4K Ultra HD at 60Hz per channel
USB Captured Resolution Up to 1080p at 60fps uncompressed / Supports 4K at 30Hz recording paths
Input Format Auto-Detection Automatically senses and locks onto incoming resolution and frame rate standards
Audio Capture Matrix 2-Channel, 16-bit, 48kHz PCM via embedded HDMI digital audio per channel
Device Protocols Compliance Fully complies with UVC (USB Video Class) and UAC (USB Audio Class) standards

Feature Detailed Specification

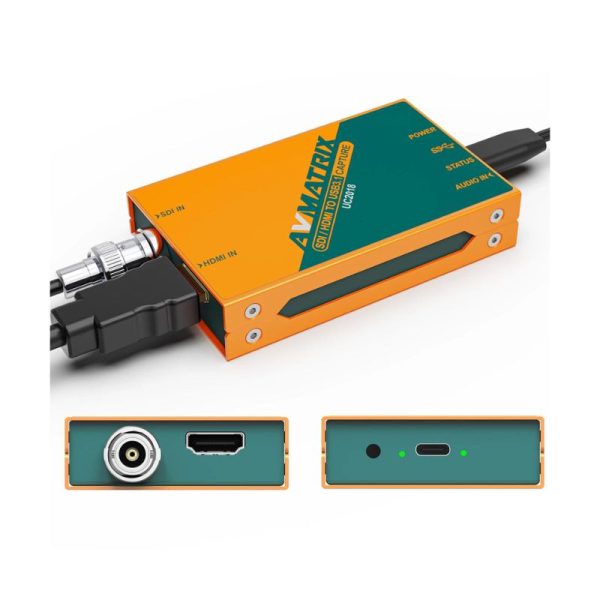

Model Number UC2018
Video Inputs

1 × 3G-SDI / HD-SDI / SD-SDI (75Ω BNC Female)

1 × HDMI Type-A Female (Supports up to HDMI 1.4a)

Primary Digital Output 1 × USB 3.1 Gen 1 Type-C (Up to 200MB/s uncompressed data bandwidth)
Input Signal Auto-Detection Automatically senses and locks onto active input source and video format
Supported Input Formats SDI/HDMI: 1080p (60/59.94/50/30/29.97/25/24 fps), 1080i (60/59.94/50 fps), 720p (60/50/30/25 fps), 576i, 480i
USB Captured Resolution Up to 1920 × 1080p at 60fps (YUV/RGB color space output supported)
Audio Capture Matrix 2-Channel, 16-bit, 48kHz PCM via embedded SDI or HDMI digital audio
Device Protocols Compliance Fully complies with UVC (USB Video Class) and UAC (USB Audio Class) standards

Feature Detailed Specification
Model Number UC1118
Video Input 1 × 3G-SDI / HD-SDI / SD-SDI (75Ω BNC Female Terminal)
Primary Digital Output 1 × USB 3.1 Gen 1 Type-C (Up to 200MB/s uncompressed data bandwidth)
Analog Audio Input 1 × 3.5mm TRS Stereo Line-In
Input Signal Auto-Detection Automatically senses and adjusts to incoming SDI video formats and frame rates
Supported SDI Formats

1080p: 60/59.94/50/30/29.97/25/24 fps

1080i: 60/59.94/50 fps; 720p: 60/50/30/25 fps; 576i / 480i

USB Captured Resolution Up to 1920 × 1080p at 60fps (YUV color space output supported)

Feature Detailed Specification

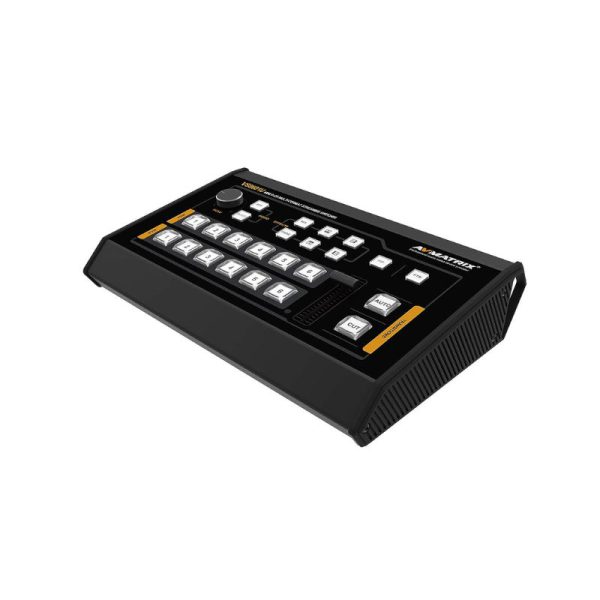

Total Mixing Channels 6 Concurrent Formats with Hardware Scaling & Cross-Conversion
Video Input Array

4 × 3G-SDI / HD-SDI / SD-SDI (BNC 75Ω)

2 × HDMI 2.0 (Supports resolutions up to UHD 4K at 60Hz)

2 × DVI-I / VGA (Natively compatible with older computing rigs)

2 × USB Type-A (Integrated media file player interfaces)

Primary Video Outputs

2 × 3G-SDI Program (PGM) Out, 2 × HDMI Program (PGM) Out

1 × 3G-SDI AUX Output (Independently assignable to any source/PGM/PVW)

Multiview Capabilities 1 × 3G-SDI & 1 × HDMI Outputs (9-window split display layout)
Streaming & Capture Out 1 × USB Type-C (Uncompressed UVC / UAC Protocol up to 1080p60)

Feature Detailed Specification
Integrated Monitor 15.6 Inch Full HD (1920 × 1080) IPS LCD Display Panel
Total Video Inputs 6 Channels (Multi-format Input Signal Auto-Detection & Scaling)
Physical Input Ports

4 × 3G-SDI / HD-SDI / SD-SDI (BNC 75Ω)

2 × HDMI Type-A (Channel 5 & 6 share with VGA/DVI inputs)

Input Format Ranges

SDI: 1080p (60/50/30/25/24fps), 1080i, 720p, 576i, 480i

HDMI/VGA: 1080p, 1080i, 720p, 576p, 576i, 480p, up to 1920×1080 at 60H

• Feature Detailed Specification

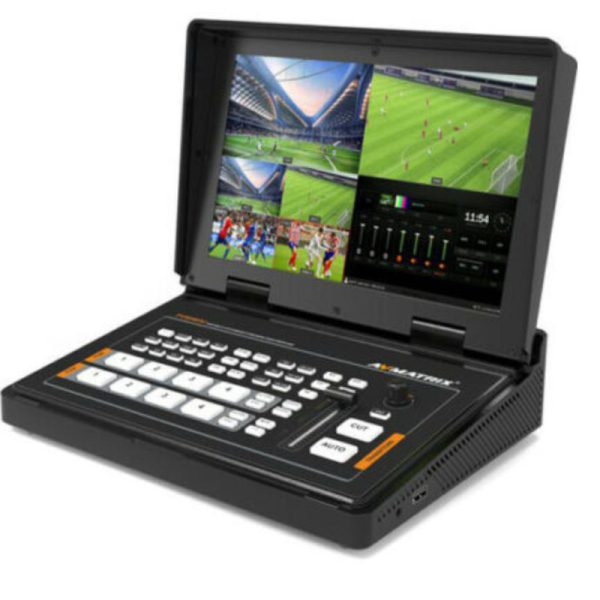

  Integrated Monitor 13.3 Inch Full HD (1920 × 1080) IPS LCD Display Panel
  Total Video Inputs 6 Channels (Multi-format Input Signal Auto-Detection)
  Physical Input Ports 4 × 3G-SDI / HD-SDI / SD-SDI (BNC 75Ω), 2 × HDMI Type-A
  Input Format Ranges
• SDI: 1080p, 1080i, 1080PsF, 720p, 625i PAL, 525i NTSC
• HDMI: 1080p, 1080i, 720p, 576p, 576i, 480p
• Master Video Outputs
• 2 × 3G-SDI Program (PGM), 1 × HDMI Program (PGM)
• 1 × 3G-SDI Multiview, 1 × HDMI Multiview
• 1 × 3G-SDI AUX Output (Assignable to PGM or PVW)

Feature Detailed Specification
Integrated Display 10.1 Inch Full HD (1920 x 1080) IPS LCD Monitor
Total Input Channels 4 Channels with Multi-format Auto Signal Detection
Physical Video Inputs 2 × 3G-SDI (BNC Female), 2 × HDMI Type-A Female
Supported Input Formats 1080p (up to 60 fps), 1080i (up to 60 fps), 720p (up to 60 fps), 576i, 480p
Primary Video Outputs 2 × HDMI Program (PGM), 1 × HDMI Preview/Multiview (MV)
Streaming & Capture Out 1 × USB Type-C (UVC Protocol for PC/Mac encoding)
Audio Connections Inputs: 2 × 3.5mm Stereo Mic/Line; Outputs: 2-Channel Embedded
Audio Mixing Matrix 4 × Embedded (HDMI/SDI) + 2 × External Analog Channels
