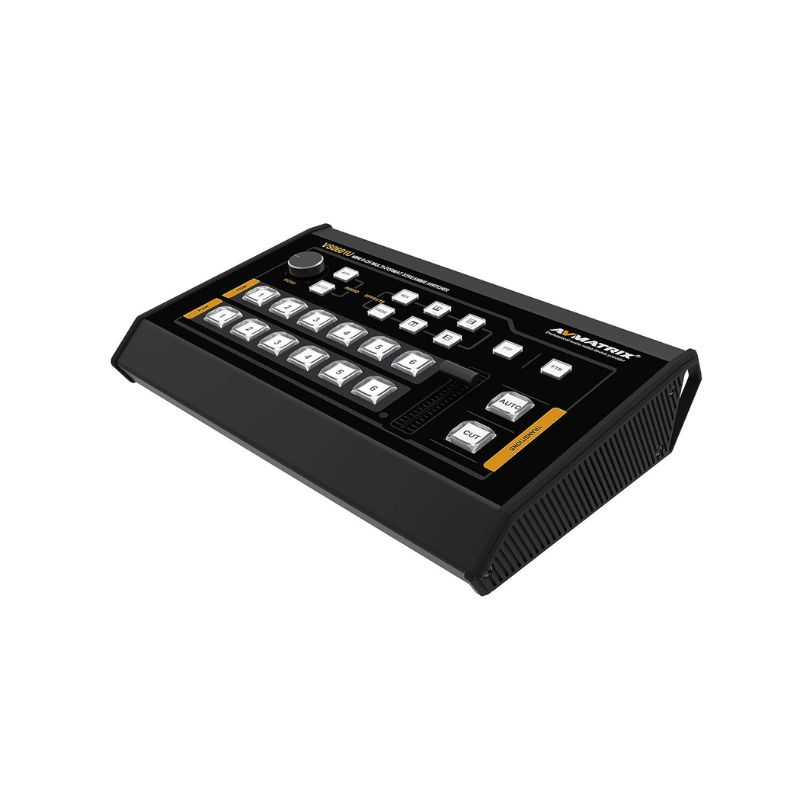

AVMATRIX VS0601U MINI 6-Channel SDI/HDMI Live Streaming Video Switcher
KSh 92,400.00
Feature Detailed Specification
Total Input Channels 6 Channels with Multi-format Auto-Sensing and Scaling
Physical Video Inputs 4 × 3G-SDI (BNC Female), 2 × HDMI Type-A Female
Supported Input Formats 1080p (60/50/30/25/24 fps), 1080i (60/50 fps), 720p (60/50/30/25 fps)
Primary Video Outputs 1 × 3G-SDI PGM, 1 × HDMI PGM, 1 × 3G-SDI AUX, 1 × HDMI Multiview
Streaming Output Interface 1 × USB Type-C (UVC/UAC Protocol for PC/Mac direct capture)
Audio Interfaces Inputs: 2 × 3.5mm Stereo Mic/Line, 1 × 2RCA Stereo; Outputs: 1 × 3.5mm Headphone
Audio Mixing Matrix 6 × Embedded (HDMI/SDI) Audio + 3 × External Analog Channels
AVMATRIX VS0601U MINI 6-Channel SDI/HDMI Live Streaming Video Switcher
Expand your broadcasting horizons and manage complex multi-camera configurations with the AVMATRIX VS0601U MINI. Engineered specifically for professional television production studios, large worship centers, corporate event coordinators, and sports broadcasting networks in Kenya, this premium multi-format live video switcher offers a versatile 6-channel input array. Outfitted with 4 dedicated 3G-SDI inputs and 2 flexible HDMI inputs, it effortlessly balances long-range commercial camera feeds with local digital media presentations. Featuring driverless USB capture for immediate streaming, multi-format scaling, automated transitions, and real-time audio mixing, it delivers elite studio control within a highly portable desktop layout.
Technical Specifications
| Feature | Detailed Specification |
| Total Input Channels | 6 Channels with Multi-format Auto-Sensing and Scaling |
| Physical Video Inputs | 4 × 3G-SDI (BNC Female), 2 × HDMI Type-A Female |
| Supported Input Formats | 1080p (60/50/30/25/24 fps), 1080i (60/50 fps), 720p (60/50/30/25 fps) |
| Primary Video Outputs | 1 × 3G-SDI PGM, 1 × HDMI PGM, 1 × 3G-SDI AUX, 1 × HDMI Multiview |
| Streaming Output Interface | 1 × USB Type-C (UVC/UAC Protocol for PC/Mac direct capture) |
| Audio Interfaces | Inputs: 2 × 3.5mm Stereo Mic/Line, 1 × 2RCA Stereo; Outputs: 1 × 3.5mm Headphone |
| Audio Mixing Matrix | 6 × Embedded (HDMI/SDI) Audio + 3 × External Analog Channels |
| Transition Effects | T-Bar Manual Transition, AUTO, CUT; WIPE (9 patterns), MIX, FADE, FTB |
| Special Effects Layout | Picture-in-Picture (PiP with size/position control), PIP/POP, Window Overlay |
| Additional I/O Ports | 1 × DB-15 Tally Interface Port |
| Chassis Build & Power | Heavy-Duty Metal Enclosure; DC 12V 2A Barrel Input (Draws ≤18W) |
AVMATRIX VS0601U MINI Key Features & Value Propositions
- Commercial 6-Channel Input Array: Move beyond the layout boundaries of standard 4-channel setups. With 4× 3G-SDI and 2× HDMI input lanes, you can map out comprehensive configurations combining multi-angle stage cameras, roaming wireless links, and high-res presentation computers simultaneously.
- Plug-and-Play USB-C UVC Streaming: The uncompressed USB Type-C output acts as a standard, driverless webcam source. Plug it straight into your PC or Mac to let software packages like OBS Studio, vMix, Zoom, and Microsoft Teams capture your live mix instantly.
- Flexible AUX Output Routing: An independent 3G-SDI AUX output can be configured to route any of the 6 input sources or the clean Program feed directly to local LED video walls, stage confidence monitors, or overflow projection arrays without lag.
- Tactile Hardware Mixer Layout: Avoid software interface friction. The desktop chassis features highly durable source-selection push buttons, a dedicated audio monitoring section, and an ergonomic physical T-bar manual transition lever for seamless wipes and fades.
- Intelligent Audio Layer Mixing: The integrated processing unit handles up to 6 channels of embedded digital HDMI/SDI sound alongside dual 3.5mm microphones and an analog RCA input, letting you refine your venue’s acoustics directly from the board.
AVMATRIX VS0601U MINI Pros & Cons
Pros
- Generous 6-input channel allocation accommodates complex commercial broadcast frameworks.
- Long-range 3G-SDI connectors prevent video signal degradation from far-away cameras.
- Driverless USB capture bridges physical camera configurations with web-based platforms instantly.
- Independent SDI AUX output allows for highly customizable in-house video distribution.
Cons
- Maximum workflow scaling and master outputs top out at 1080p60 (does not support 4K layouts).
- Lacks native direct-to-LAN hardware encoding (requires a computer via USB-C to push streams to the web).
AVMATRIX VS0601U MINI Variation Price Table (Estimated Kenya Market)
| Switcher Model Lineup | Physical Core Interfaces | Network / Recording Features | Estimated Price (Ksh) |
| AVMATRIX HVS0402U MICRO | 4 × HDMI Inputs | USB-C Web Capture Only | 60,000 |
| AVMATRIX SHARK S4 Hybrid | 2 × 3G-SDI & 2 × HDMI | Direct LAN Stream & Local Media REC | 63,700 |
| AVMATRIX VS0601U MINI (Current) | 4 × 3G-SDI & 2 × HDMI | USB-C Capture & Independent AUX Output | 78,500 |
| AVMATRIX SHARK S6 Pro | 4 × 3G-SDI & 2 × HDMI | Direct LAN Stream & Local Media REC | 94,500 |
AVMATRIX VS0601U MINI Suitable Application Areas
- Television & Production Studios: Perfect as an elegant primary mixing console or rapid-deployment backup board for live talk shows, news panels, and corporate recordings.
- Houses of Worship: Bring long-run SDI camera angles together from across a large sanctuary while seamlessly overlaying sermon notes from an HDMI media laptop.
- Live Sports & Stadium Broadcasting: Leverage the 4 dedicated SDI lines to manage secure, distortion-free BNC cable runs from trackside or field positions back to the command desk.
- High-Profile Corporate Summits: Coordinate complex multi-speaker panel discussions, routing discrete feeds to local main screens while simultaneously web-broadcasting to global virtual attendees.
Verdict
The AVMATRIX VS0601U MINI is a professional live production powerhouse that packs massive 6-channel mixing capabilities into a space-saving desktop frame. By smartly matching four long-range 3G-SDI inputs with dual HDMI inputs and a dedicated AUX routing terminal, it removes the need for expensive external converters and distribution amplifiers in multi-cam environments. It functions as an incredibly stable hardware bridge, transforming field feeds into a polished presentation via driverless USB-C web capture and tactile transition controls. For professional media production agencies, sports networks, and large congregations in Kenya looking to scale up their broadcast layout, this switcher represents an exceptionally smart, high-return procurement asset.
