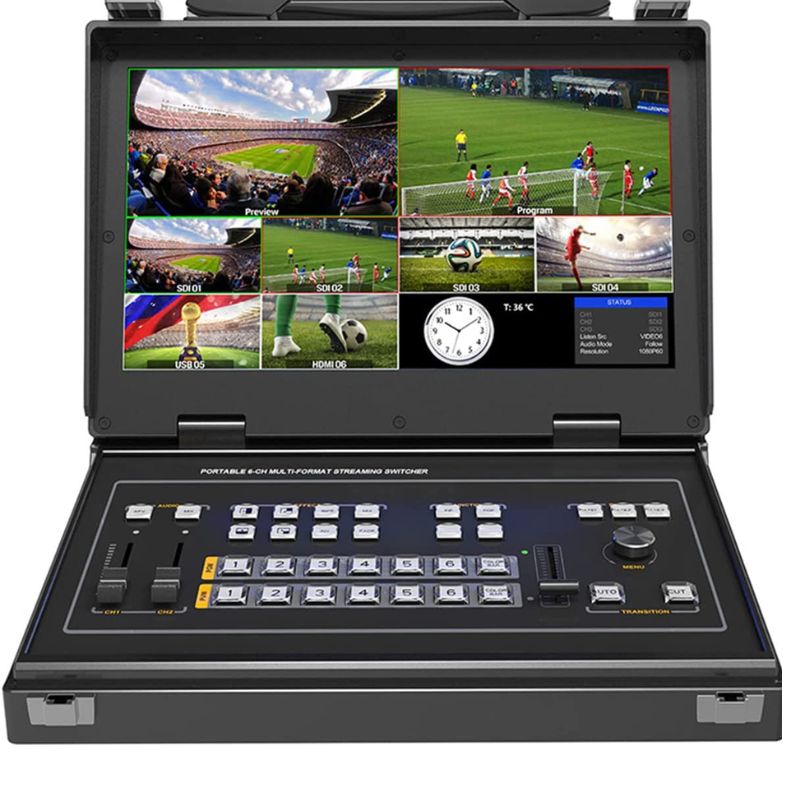

AVMATRIX PVS0613U Portable 6-Channel SDI/HDMI Multi-Format Live Streaming Switcher

Deploy a complete mobile television studio anywhere with the AVMATRIX PVS0613U. Engineered specifically for broadcast production agencies, multi-camera live event teams, sports networks, and house of worship media ministries in Kenya, this all-in-one console eliminates location tech clutter. Featuring an integrated, heavy-duty 13.3-inch Full HD IPS monitor, it maps out your multiview grid, preview windows, program feeds, and system settings instantly. Packing a diverse 6-channel hardware array with 4 auto-detecting 3G-SDI inputs and 2 HDMI inputs, it harmonizes different source resolutions and frame rates perfectly via a high-performance internal scaler, supplying broadcast-tier execution under a single clamshell hood.

Technical Specifications

e AVMATRIX PVS0613U Key Features & Value Propositions

• Integrated 13.3″ Folding Workstation Monitor: The large, built-in Full HD IPS screen gives operators clear monitoring over the 6 input sources, Preview (PVW), Program (PGM), and stereo audio tracking lines. This design altogether saves you the expense and bulk of carrying separate external preview screens to production sets.
• True Mixed Multi-Format Integration: Backed by an internal hardware-level cross-scaler, the switcher auto-detects and synthesizes mixed resolutions and frame rates up to 1080p60 simultaneously. You can bridge standard HDMI presentation laptops with professional SDI cameras across long cable spans flawlessly.
• Driverless USB-C 3.0 Streaming Capture: The high-speed USB Type-C terminal operates on a driverless Universal Video Class (UVC/UAC) blueprint. Connect directly to any Windows, Mac, or Linux host machine to let production tools like OBS Studio, vMix, Zoom, and Teams recognize the setup immediately as an advanced webcam source.
• Customizable AUX Matrix Routing: The independent 3G-SDI AUX output port can be reassigned with a physical dial matrix on the interface. This gives technical directors flexibility to route either raw camera feeds, preview pipelines, or clean program master mixes directly to in-house projector arrays or LED overview walls without lag.
• Tactile Professional Control Surface: Built with an active physical hardware T-Bar and dedicated backlight controls, the interface supports seamless manual wipes, fades, dissolves, and precise automated transitions. It also includes an instant Fade-to-Black (FTB) button to manage event emergencies or video dropouts easily.

 AVMATRIX PVS0613UPros & Cons

Pros

• All-in-one folding clamshell workstation configuration provides massive mobility and quick field setup.
• Generous 6-input layout (4x SDI and 2x HDMI) scales easily to handle larger commercial production requirements.
• Uncompressed UVC USB-C 3.0 throughput feeds video data into encoding software smoothly.
• Rugged metal frame shields hidden rear cable interface blocks from structural damage during transit.

Cons

• Maximum output matrix capabilities are capped at 1080p60 (does not support native 4K scaling lines).
• Unlike lower-tier 4-channel models, this specific model layout does not incorporate integrated hardware Chroma Keying elements out-of-the-box.

AVMATRIX PVS0613U Variation Price Table (Estimated Kenya Market)

 AVMATRIX PVS0613USuitable Application Areas

• Mobile Live Event Broadcasters: An excellent, single-case asset for outdoor multi-cam video capture deployments, hybrid weddings, and regional news gathering where desk space is scarce.
• Large Houses of Worship: Seamlessly transition between long-range sanctuary cameras mounted far away over SDI and media graphics laptops fed close by over HDMI, keeping tab on layouts directly from the workstation monitor.
• Corporate AGMs & Product Launches: Connect complex speaker arrays to broadcast clear, multi-view managed layouts to global viewers via OBS or Teams while using the AUX output to feed on-stage projectors simultaneously.
• Live Sports & Stadium Coverage: Run secure, distortion-free BNC cable lengths from trackside or pitch cameras back to the production table, maintaining sharp image scaling across the board.

Verdict

The AVMATRIX PVS0613U stands out as a premier portable production command center that delivers top-tier studio flexibility into a compact, carry-on format. By embedding an elegant 13.3-inch Full HD display right inside a solid metal chassis alongside four professional 3G-SDI ports and dual HDMI inputs, it completely bypasses the messy setups usually associated with multi-camera workflows. While it maps its streaming data over a computer host via USB-C capture instead of native direct-to-LAN IP streaming, the sheer stability of its dedicated internal scaler and uncompressed video output offers immense value. For video production crews and venues in Kenya seeking an elegant, high-performance hybrid console built to withstand field production demands, investing in this model represents a highly strategic choice.
