Technical Specifications
Category Specification
System Architecture 1x Master Base Station + 4x Rugged Remote Beltpacks (Expandable)
Communication Mode Full-Duplex (Simultaneous multi-user talk and listen)
Transmission Distance 1,000 feet ($300\text{m}$) Line-of-Sight (LOS) from Base Station
Wireless Frequency Carrier-Grade DECT Technology (Avoids congested $2.4\text{ GHz}$ Wi-Fi noise)
Audio Quality Frequency $200\text{ Hz to }7\text{ kHz}$ Bandwidth (Optimized for vocal intelligibility)
Signal-to-Noise Ratio > 50 dB
Acoustic Distortion < 2%

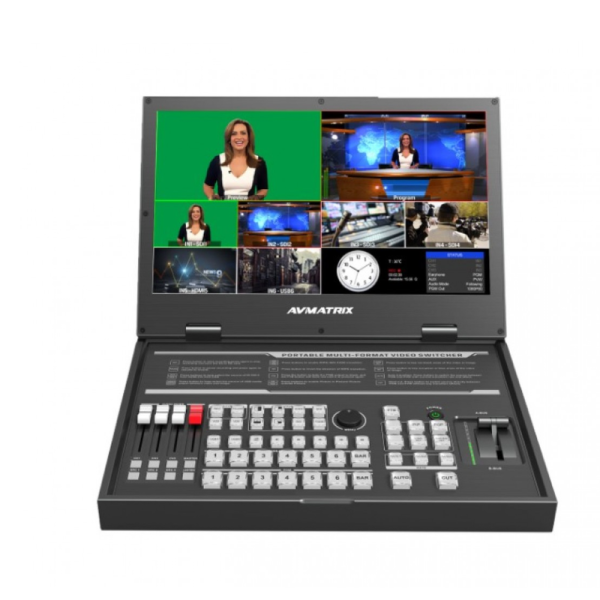

Feature Detailed Specification
Integrated Monitor 15.6 Inch Full HD (1920 × 1080) IPS LCD Display Panel
Total Video Inputs 6 Channels (Multi-format Input Signal Auto-Detection & Scaling)
Physical Input Ports

4 × 3G-SDI / HD-SDI / SD-SDI (BNC 75Ω)

2 × HDMI Type-A (Channel 5 & 6 share with VGA/DVI inputs)

Input Format Ranges

SDI: 1080p (60/50/30/25/24fps), 1080i, 720p, 576i, 480i

HDMI/VGA: 1080p, 1080i, 720p, 576p, 576i, 480p, up to 1920×1080 at 60H

Technical Specifications
Category Specification
Transmission Range 1,000 feet ($300\text{m}$) Line-of-Sight (LOS) wireless range
System Propagation Latency Near-zero propagation delay down to 0.04 seconds (40ms)
Wireless RF Protocol HEVO Technology (Hardware-accelerated H.265 / HEVC coding)
Frequency Hopping Speed Synchronous frequency hopping completed in 0.001s (Adaptive AFH)
Transmitter (TX) Interfaces 1x 3G-SDI Input, 1x 3G-SDI Loop-out, 1x HDMI Input (Type-A)
Receiver (RX) Interfaces 2x 3G-SDI Output, 1x HDMI Output, 1x USB Type-C (UVC Capture Port)

Technical Specifications
Category Specification
Video Ingest Grid 4 Channels Total: 2x HD-SDI (BNC), 2x HDMI Type-A
Supported Video Formats 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz
Video Output Grid 1x HD-SDI (Assignable to PGM/PVW/AUX), 2x HDMI (1x Multiview, 1x PGM)
Frame Synchronizer Built-in frame synchronizer (TBC) on every input channel; no external sync required
Audio Inputs 2x Balanced XLR Analog inputs, 1x Stereo RCA pair, Embedded SDI/HDMI audio
Audio Outputs 1x Stereo RCA pair, 1x 3.5mm Headphone Jack; Embedded SDI/HDMI audio
Internal Audio Mixer Integrated 4-channel audio mixer with volume sliders and audio-follow-video (AFV)

Technical Specifications
Category Specification
User Capacity 6-Person Full-Duplex Team (1 Master Headset + 5 Remote Headsets)
Transmission Range 1,100 feet ($350\text{m}$) Line-of-Sight (LOS)
Wireless Frequency 2.4 GHz (Advanced auto-frequency hopping for interference resistance)
Audio Processing Dual-Mic Environmental Noise Cancellation (ENC) technology
Frequency Response 150 Hz to 7 kHz (Tailored explicitly for vocal clarity)

Technical Specifications
Category Specification
Kit Configuration 2x Matching Pyro 7 Units (Each can be independently set to TX or RX mode)
Display Panel Screen 7.0-inch Touchscreen IPS LCD Architecture (Per unit)
Native Panel Resolution $1920 \times 1200$ pixels
Maximum Peak Brightness 1200 cd/m² (Nits) daylight-viewable panel
Wireless Range Reach 1,300 feet ($400\text{m}$) Line-of-Sight (LOS) range
System Signal Latency Ultra-low propagation delay of approximately 0.06 seconds (60ms)
