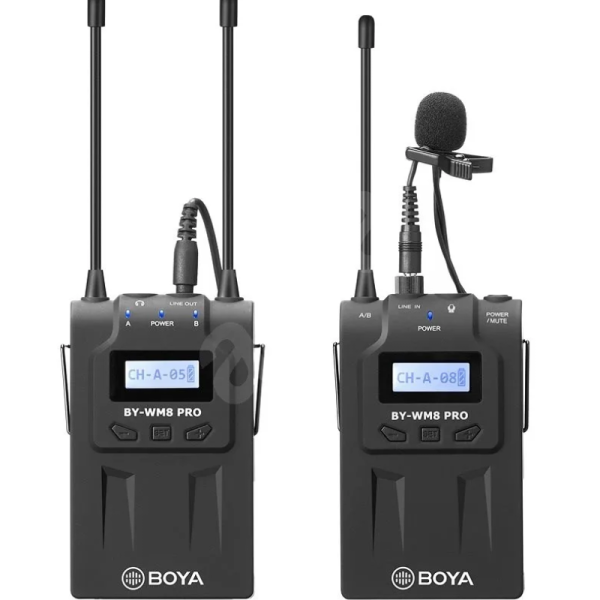

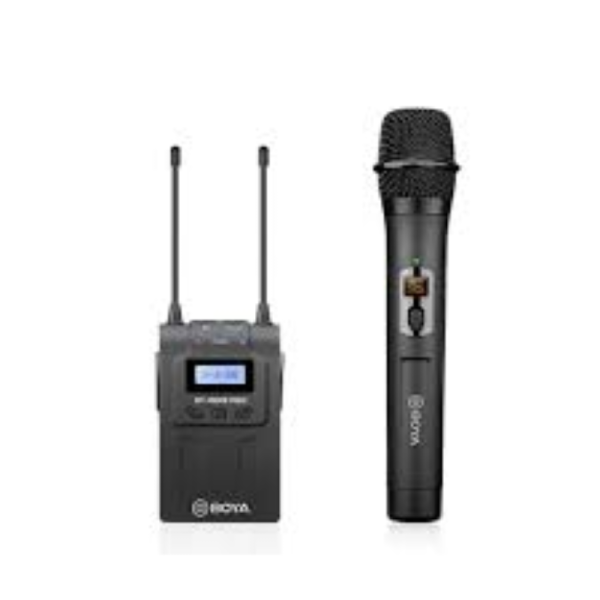

Technical Specifications
Category Specification
Oscillator Type PLL Synthesized Control Oscillator
RF Spectrum Channel Bands UHF Tuning Frequency Space (Group A: 556.71 MHz – 575.98 MHz / Group B: 576.39 MHz – 595.66 MHz)
Selectable Channels 48 Independent Wireless Channels
Operational Range Reach Up to 100 meters (328 feet) line-of-sight without physical obstacles
System Frequency Response 40 Hz to 18 kHz ($\pm 3\text{ dB}$)

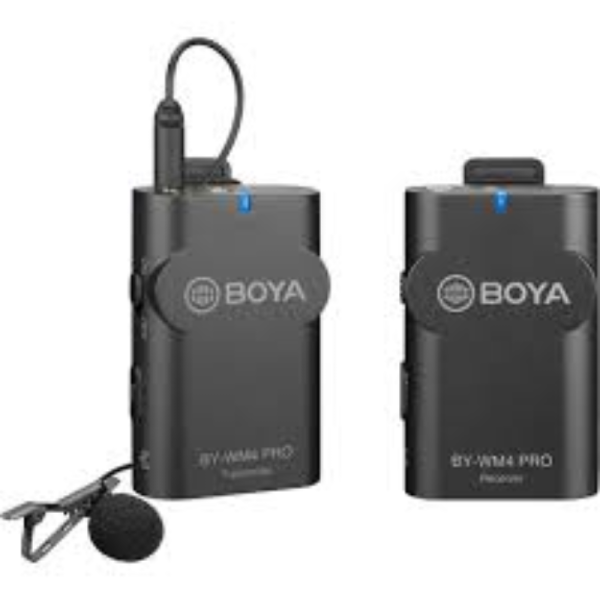

Technical Specifications
Category Specification
RF Modulation GFSK (Gauss Frequency Shift Keying)
Frequency Band 2.4 GHz (2405 MHz – 2478 MHz)
Operating Range Up to 60 meters (197 feet) line-of-sight without obstacles
Frequency Response 35 Hz – 14 kHz ($\pm 3\text{ dB}$)
Signal-to-Noise Ratio (SNR) 84 dB or more
Distortion (THD) 0.05% or less ($32\,\Omega, 1\text{ kHz}, 65\text{ mW}$ output)

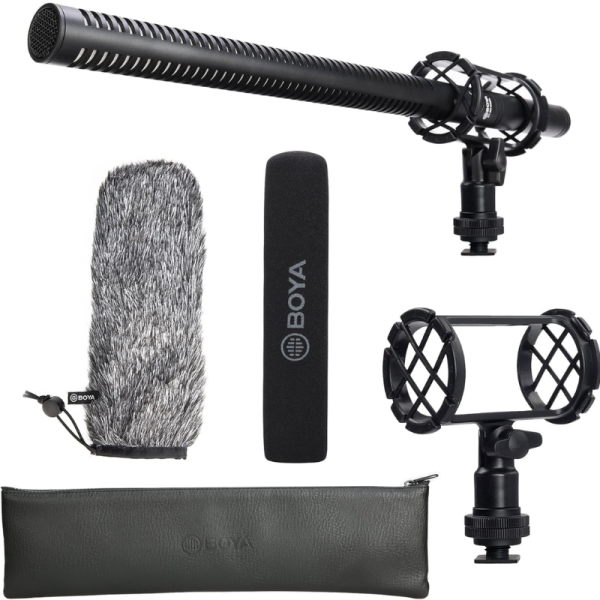

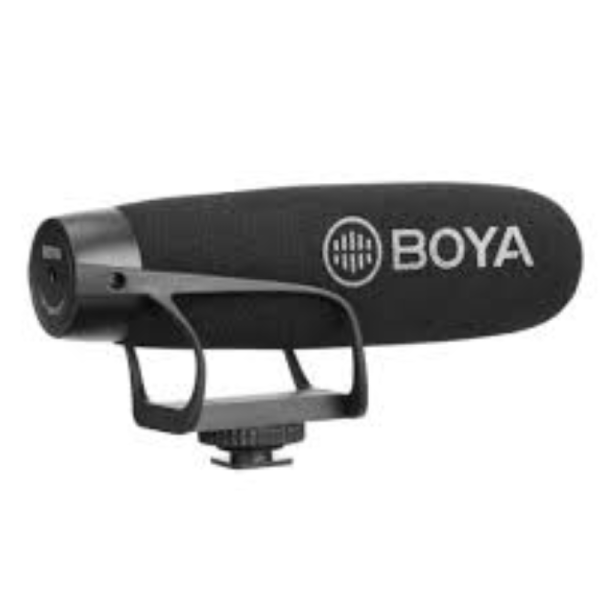

Technical Specifications
Category Specification
Acoustic Principle Condenser Capsule
Polar Pickup Pattern Supercardioid (Highly directional forward-facing focus)
Frequency Response 40 Hz – 20 kHz
Sensitivity -35dB $\pm$ 3dB (at 1kHz, 0dB=1V/Pa)
Signal-to-Noise Ratio (SNR) 76 dB
Output Connectivity 1x 3.5mm TRS mini-jack terminal port

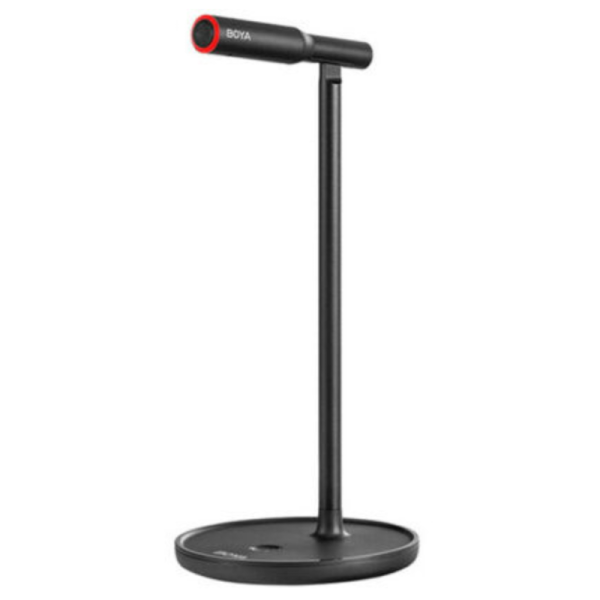

Technical Specifications
Category Specification
Acoustic Principle Condenser Capsule
Polar Pickup Pattern Cardioid (Directional front-focused pickup)
Frequency Response 20 Hz – 20 kHz
Sensitivity -47±3dB (0dB=1V/Pa, at 1KHz)
Sampling Rate / Resolution 48 kHz / 16-Bit digital audio processing
Signal-to-Noise Ratio $\ge 82\text{ dB}$

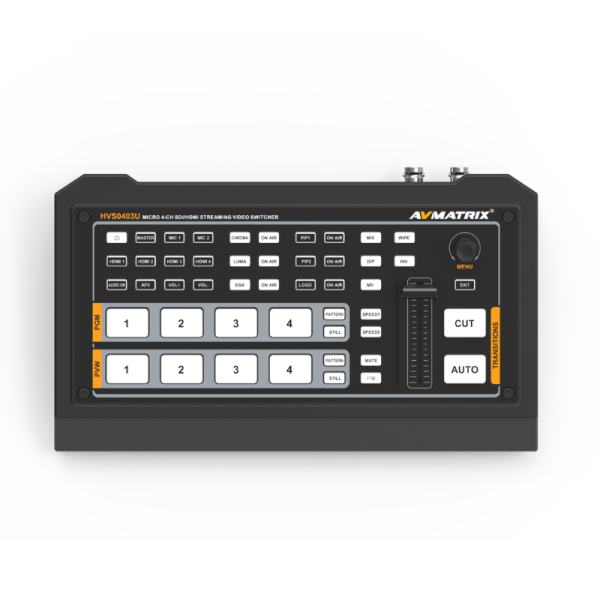

Technical Specifications
Category Specification
Video Input Grid 4 Channels Total: 2x 3G-SDI (BNC Terminal), 2x HDMI Type-A
Input Format Support Auto-detects 1080p, 1080i, 720p, 576p, 480p, and NTSC/PAL frames up to 60 fps
Video Output Ports 2x HDMI Type-A Program (PGM), 1x HDMI Type-A Multiview, 1x USB Type-C (UVC Capture)
Processing Resolution Real-time internal hardware scaling up to 1080p @ 60 fps (YUV / RGB processing)
USB Streaming Interface 1x USB Type-C supporting uncompressed UVC/UAC video capture protocols
Analog Audio Inputs 2x 3.5mm TRS Stereo Mic/Line input jacks
Audio Processing 6-Channel digital audio mixer with delay adjustment and Audio-Follow-Video (AFV) modes

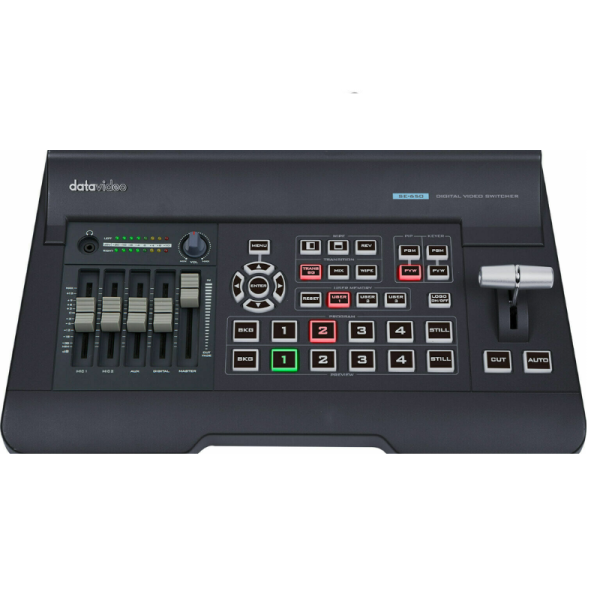

Technical Specifications
Category Specification
Video Ingest Grid 4 Channels Total: 2x HD-SDI (BNC), 2x HDMI Type-A
Supported Video Formats 1080i @ 50/59.94/60Hz, 720p @ 50/59.94/60Hz
Video Output Grid 1x HD-SDI (Assignable to PGM/PVW/AUX), 2x HDMI (1x Multiview, 1x PGM)
Frame Synchronizer Built-in frame synchronizer (TBC) on every input channel; no external sync required
Audio Inputs 2x Balanced XLR Analog inputs, 1x Stereo RCA pair, Embedded SDI/HDMI audio
Audio Outputs 1x Stereo RCA pair, 1x 3.5mm Headphone Jack; Embedded SDI/HDMI audio
Internal Audio Mixer Integrated 4-channel audio mixer with volume sliders and audio-follow-video (AFV)

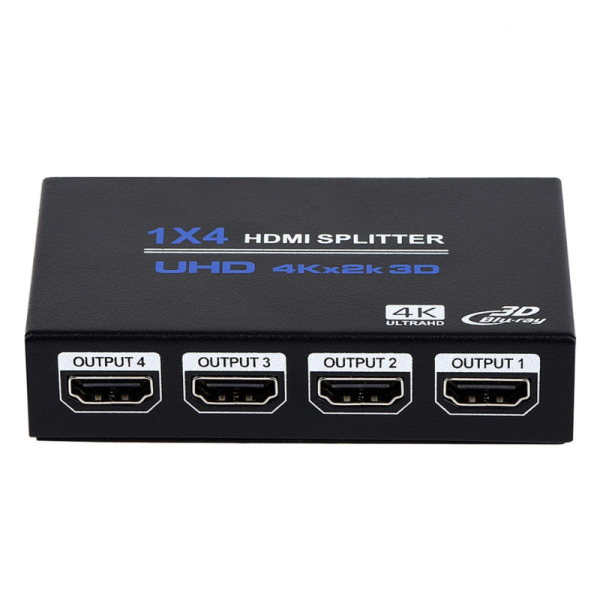

Technical Specifications
Category Specification
Input Interface 1x HDMI Type-A (Female)
Output Interface 4x HDMI Type-A (Female)
HDMI Version HDMI 1.4b / HDMI 2.0 (Model dependent; supports deep color and 3D video parameters)
HDCP Compliance Integrated HDCP 1.4 / HDCP 2.2 hardware encryption standard
Supported Resolutions Ultra HD 4K@30Hz / 4K@60Hz, Full HD 1080p, 1080i, 720p, 576p, 480p
Video Color Formats 24-bit, 30-bit, 36-bit deep color
Digital Audio Support DTS-HD, Dolby-TrueHD, LPCM7.1, DTS, Dolby-AC3, DSD
Data Bandwidth Up to 10.2 Gbps / 18 Gbps total throughput bandwidth
