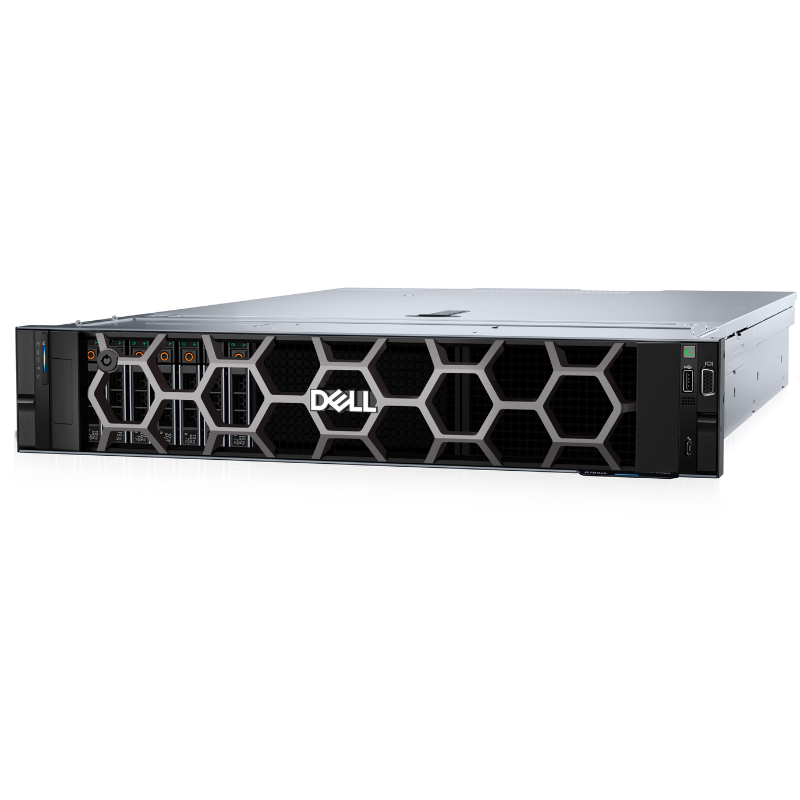

Dell PowerEdge R760xs Rack Server – Intel Xeon Silver 4514Y, 64GB RDIMM, 480GB SSD, 16‑Bay 2.5″ Chassis, PERC H755, 10GbE – Mid‑Range Rack Server in Kenya

Product for Sale Description

The Dell PowerEdge R760xs Rack Server (Mid‑Range RACK SERVER) is a flexible, high‑density 2U rack‑mount server engineered for virtualisation, application hosting, databases, containers and private cloud workloads in Kenya. With a 2.5″ chassis supporting up to 16 SAS/SATA hard drives and a high‑core Intel Xeon Silver CPU, this configuration is ideal for organisations that need strong performance, lots of front‑accessible drive bays and enterprise‑class management.

This Dell PowerEdge R760xs rack server is powered by an Intel Xeon Silver 4514Y 2.0GHz processor with 16 cores / 32 threads, 16GT/s interconnect, 30MB cache, Turbo and Hyper‑Threading (150W). Paired with 64GB DDR5 RDIMM ECC memory at 5600MT/s (single rank), it delivers excellent multi‑threaded performance and high memory bandwidth for hypervisors (VMware, Hyper‑V, Proxmox), application servers and multi‑VM environments.

The 2.5″ chassis with up to 16 drive bays gives you outstanding storage density. Out of the box, the server includes 1 × 480GB SATA Read Intensive (RI) 6Gbps 2.5″/3.5″ hybrid hot‑plug AG SSD, ideal as a fast boot or system volume. Storage is managed by a PERC H755 SAS Front RAID controller (PERC11 family) supporting RAID 0/1/5, giving you enterprise‑grade performance and data protection once you add additional SSDs or HDDs.

Networking is handled by the PowerEdge R750xs motherboard with Broadcom 5720 dual‑port 1GbE on‑board LOM, plus a Broadcom 57416 dual‑port 10GbE BASE‑T OCP 3.0 NIC, so you get two 1GbE and two 10GbE ports for production, storage and management traffic. Enterprise‑class remote management comes via iDRAC9 Enterprise 16G, providing full out‑of‑band control, monitoring, virtual media and automation. The server ships with rack rails and a standard front bezel for seamless rack installation.

Power is provided by dual, redundant (1+1) hot‑plug 1100W MM Titanium power supplies (100–240Vac) for high efficiency and failover protection. Riser Config 0 (no riser, 1×16 + 1×8 PCIe lanes with 1 CPU plus OCP) still gives room for PCIe expansion as your environment grows. This mid‑range Dell PowerEdge R760xs rack server is backed by 3‑Year Basic Next Business Day Onsite support, ensuring business continuity.

In your servers in Kenya catalogue, position this configuration as a mid‑range, high‑density 2.5″ R760xs option above entry‑level R360/R260 systems and beside higher‑end multi‑socket designs:
Servers in Kenya



Pros – Why Choose Dell PowerEdge R760xs Xeon Silver 4514Y, 64GB RDIMM, 480GB SSD, 16‑Bay 2.5″

• Intel Xeon Silver 4514Y (16C/32T, Turbo, 150W) – high core count for virtualisation, multi‑tenant workloads and CPU‑intensive applications.
• 64GB DDR5‑5600 RDIMM ECC memory – fast, reliable ECC RAM with headroom to scale further as workloads grow.
• 2.5″ chassis with up to 16 hot‑plug SAS/SATA drives – superb storage density for SSD‑heavy or tiered storage designs.
• PERC H755 SAS RAID (RAID 0/1/5) – enterprise RAID controller delivering performance and data protection.
• Dual 1GbE + dual 10GbE (Broadcom 57416 OCP) – high‑speed, redundant networking for production and storage traffic.
• Dual 1100W Titanium PSUs + iDRAC9 Enterprise – efficient power plus full remote management for data‑centre operations.

When customers compare options in your servers in Kenya category, highlight this Dell PowerEdge R760xs mid‑range rack server as the perfect platform for dense SSD storage, modern virtualisation stacks and future‑ready networking:
Servers in Kenya

Detailed Specification – Dell PowerEdge R760xs Rack Server (Mid‑Range RACK SERVER, 2.5″ 16‑Bay)

Category	Specification
Model	Dell PowerEdge R760xs Rack Server (Mid‑Range RACK SERVER)
Form Factor	Rack‑mount server (typically 2U – confirm from full spec)
Chassis	2.5″ chassis with support for up to 16 SAS/SATA hard drives, PERC11
Motherboard	PowerEdge R750xs motherboard with Broadcom 5720 dual‑port 1GbE on‑board LOM
Rails & Bezel	Rack rails and standard front bezel included
Support	3‑Year Basic Next Business Day Onsite support

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Processor

Category	Specification
CPU Model	Intel Xeon Silver 4514Y
Base Frequency	2.0 GHz
Cores / Threads	16 cores / 32 threads
Cache	30MB L3 cache
Interconnect	16GT/s
Features	Intel Turbo Boost, Hyper‑Threading
TDP	150W
CPU Count	1 × Xeon Silver 4514Y in this configuration (chassis design supports 2 CPUs overall)

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Memory

Category	Specification
Installed Memory	64GB DDR5 RDIMM ECC
Type	RDIMM (Registered DIMM), ECC
Speed	5600 MT/s
Rank	Single rank modules
Maximum Capacity*	Total supported memory based on full R760xs spec (insert when known)
Memory Slots*	Number of DIMM slots (e.g., 8/12/16 – confirm from official Dell documentation)

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Storage & RAID

Category	Specification
Drive Bays	Up to 16 × 2.5″ hot‑plug SAS/SATA drives
Installed Drive	1 × 480GB SSD, SATA Read Intensive (RI), 6Gbps, 2.5″/3.5″ hybrid hot‑plug AG drive
Storage Interface	SAS/SATA via front backplane
RAID Controller	PERC H755 SAS Front (PERC11 family)
RAID Levels Supported	RAID 0, RAID 1, RAID 5
Storage Expansion	Add SSDs/HDDs (up to 16 total) for capacity, IOPS and RAID redundancy

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Networking

Category	Specification
On‑board NIC	Broadcom 5720 dual‑port 1GbE LOM
Additional NIC	Broadcom 57416 dual‑port 10GbE BASE‑T adapter, OCP NIC 3.0
Total Ports	2 × 1GbE RJ‑45 + 2 × 10GbE RJ‑45
Use Cases	Production LAN, storage and hypervisor networks (iSCSI/NFS), redundancy and link aggregation

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Management

Category	Specification
Management Controller	iDRAC9, Enterprise 16G
iDRAC Features	Full remote console, virtual media, advanced monitoring, power/thermal management and alerting
Licensing	Enterprise‑level iDRAC license included for complete out‑of‑band management

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Power

Category	Specification
PSU Configuration	Dual, redundant (1+1) hot‑plug power supplies
PSU Rating	1100W MM Titanium each
Input Voltage	100–240Vac
Redundancy	Yes – 1+1 redundancy for high availability
Efficiency	Titanium‑rated, high‑efficiency PSUs to reduce power loss and heat

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Expansion & Riser

Category	Specification
Riser	Riser Config 0 – No riser, 1×16 + 1×8 PCIe (with 1 CPU), with OCP
PCIe Slots*	One PCIe x16 slot + one PCIe x8 slot (confirm PCIe generation and lane mapping from full spec)
OCP NIC	OCP 3.0 slot populated with Broadcom 57416 dual‑port 10GbE BASE‑T

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Physical & Other*

Category	Specification
Rack Height	Typically 2U (confirm exact number of rack units in Dell spec)
Dimensions (H × W × D)	Insert official dimensions from Dell documentation
Weight	Insert approximate weight for this configuration
Cooling	Standard Dell PowerEdge R‑series fans (fan count and layout from spec)

For easier decision‑making, show this Dell PowerEdge R760xs 16‑bay 2.5″ configuration alongside the R760xs 3.5″ 12‑bay, R660xs and R360 in your servers in Kenya category so customers can clearly see the trade‑offs between drive density, core count and budget:
Servers in Kenya

Price Variation in Kenya – Dell PowerEdge R760xs Xeon Silver 4514Y, 64GB, 480GB, 16‑Bay 2.5″

The price of the Dell PowerEdge R760xs Rack Server – Intel Xeon Silver 4514Y, 64GB RDIMM, 480GB SSD, PERC H755, 10GbE, iDRAC Enterprise, 16‑bay 2.5″ chassis in Kenya will vary with RAM size, storage configuration, NIC options and support level.

Variant	Typical Description	Relative Price Level
Base R760xs 2.5″ Config	Single Silver CPU, lower RAM (e.g., 16–32GB), small SSD, minimal support	Lowest entry price; best for pilot or light workloads
Mid‑Range Config (This Spec)	Xeon Silver 4514Y, 64GB RDIMM, 1 × 480GB SSD, PERC H755, 10GbE, iDRAC Enterprise, dual 1100W PSUs	Best balance of performance, density and cost
Enhanced Storage/Memory	More RAM (128GB+), multiple SSDs/HDDs (RAID 5/10), extra NICs, higher‑tier support	Higher CapEx; ideal for heavy virtualisation or databases
Refurb / Older R‑Series	Pre‑owned Dell R‑series with varied specs, shorter warranty	Lowest upfront cost; higher operational risk and lower efficiency

Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y Summary Conclusion (Price & Value)

For mid‑sized businesses, MSPs and organisations building modern virtualisation clusters or storage‑heavy application stacks, the Dell PowerEdge R760xs Rack Server Intel Xeon Silver 4514Y 64GB RDIMM 480GB SSD 16‑Bay 2.5″ delivers excellent long‑term value:

• High‑core Xeon Silver CPU and DDR5 RDIMM ECC ensure robust, scalable compute and memory resources,
• Sixteen front‑accessible 2.5″ bays with PERC H755 RAID give huge flexibility for SSD‑first or tiered storage designs, and
• Dual 10GbE, iDRAC9 Enterprise and dual Titanium PSUs provide data‑centre‑class networking, manageability and power efficiency.

For many environments, this mid‑range Dell PowerEdge R760xs rack server hits the sweet spot between performance, density and budget, with clear expansion paths in RAM, storage and PCIe as your workloads and data footprint grow.
